1.6kW Portable X-Ray
Smart 1600

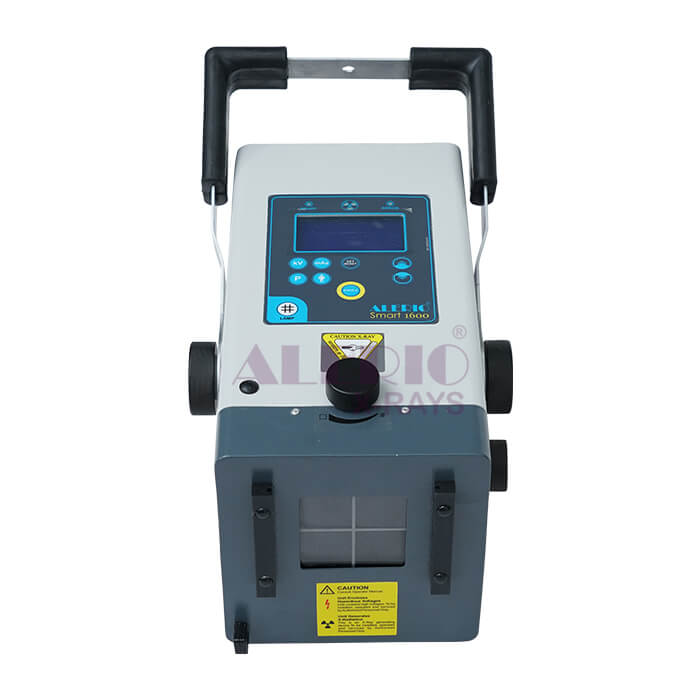

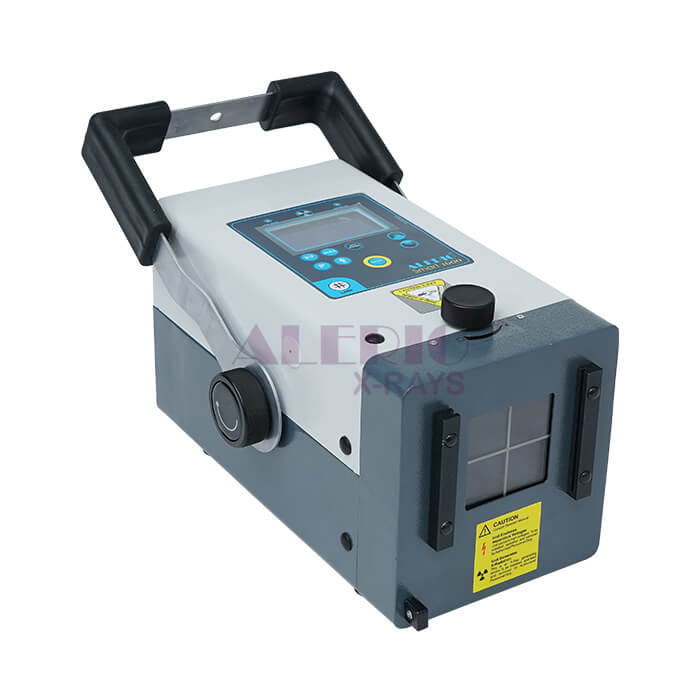

ALERIO Smart 1600 is a compact battery powered x-ray unit for general x-ray imaging procedures. The unit is small and lightweight for easy carrying to the location of use. The unit has an in-built collimator for x-ray field setting and easy battery swapping feature. ALERIO X-Rays are safety certified equipment Made in India and comes with warranty and after sales support.


Download catalogue
  • alerio_1600_pro_1
  • alerio_1600_pro_2
  • alerio_1600_pro_3



Out of Box Contents


  • X-Ray Unit Smart 1600
  • 2x Battery
  • Battery Charger
  • Battery Charging Dock
  • 3 Meter Long Exposure Switch
  • Carrying Soft Case

Optional Accessories

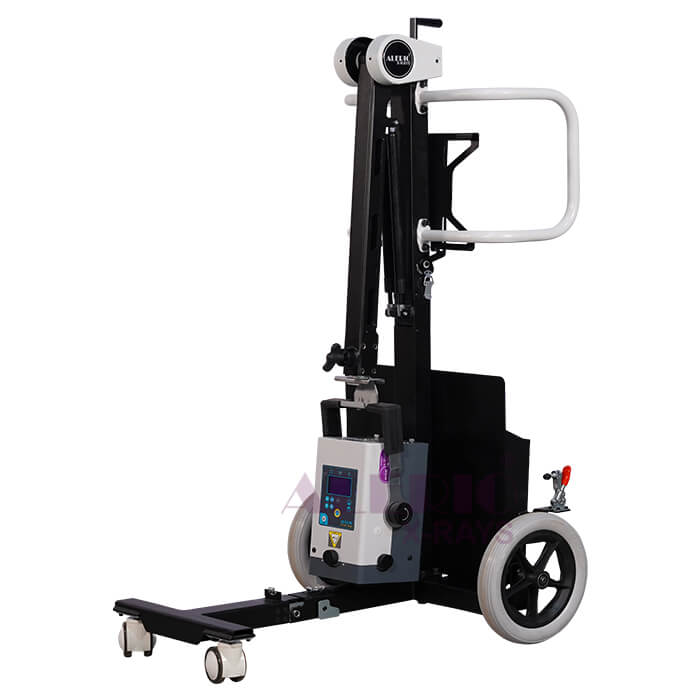

  • Portable Stand
  • Carrying Hard Case

General Specification


kV Range 40kV-90kV
mAs Range 0.1mAs-40mAs
Peak Power 1600W
Focal Spot 0.8mm
InPut Power Battery, Rechargeable
Collimator In-built with high brightness lamp
Collimator Field Max 14" x 14" @ 100cm SID
Weight <10KG
Dimension 159 x 172 x 310 mm
WATCH VIDEO

Portable
DC X-Ray

Best In Class, Premium
Battery Powered.


1.6kW Portable X-Ray Smart 16001.6kW Portable X-Ray Smart 1600
