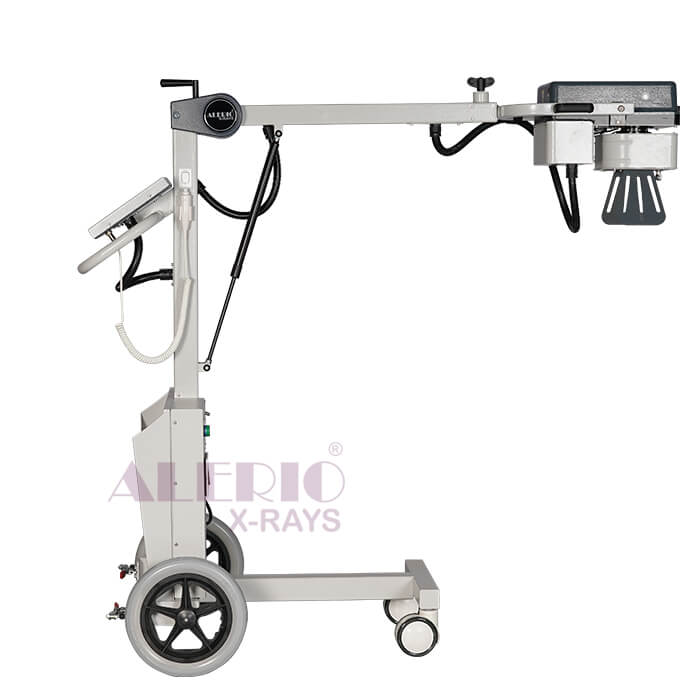

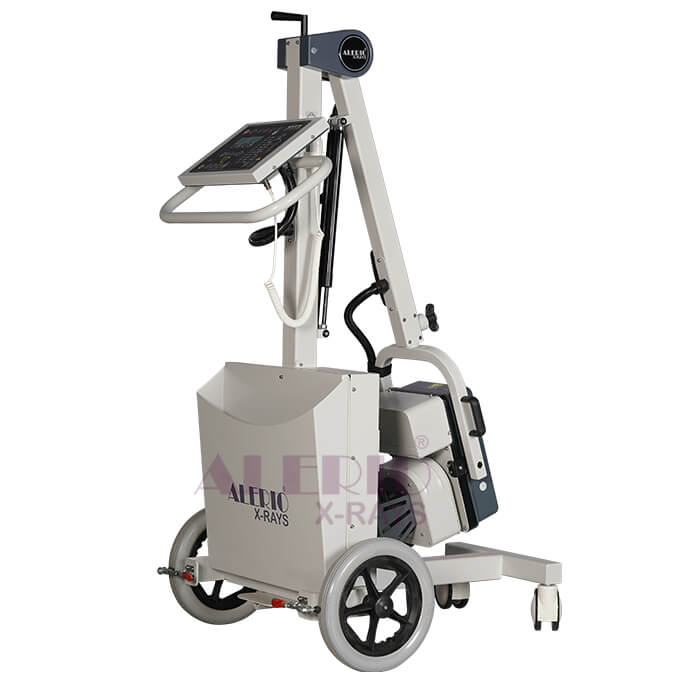

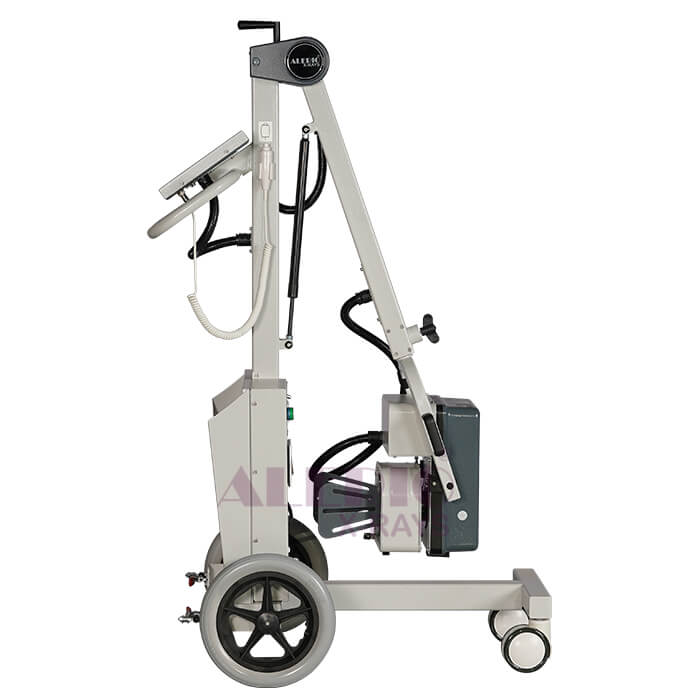

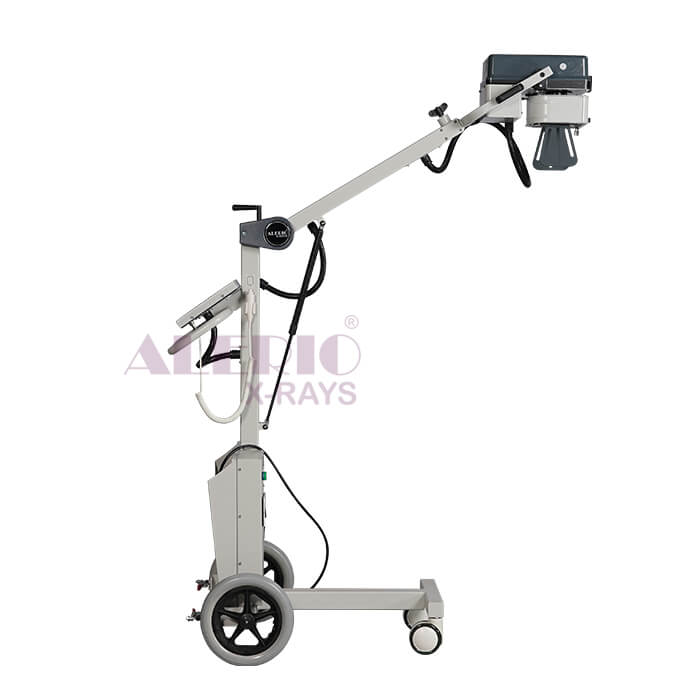

4.2kW Mobile X-Ray Smart 4200


ALERIO Smart 4200 is a compact yet powerful Mobile X-Ray Machine for general radiographic procedures. It uses advanced High Frequency DC Output x-ray generation technology. The overall size and weight of the equipment is low, making it ideal for applications with space constraints. The DC output enables good x-ray imaging at a lower exposure setting. The equipment can be powered from astandard power outlet. It has an in-built voltage stabilizer to counter mains voltage variations. The equipment has aselectable second focus for finer low dose imaging. ALERIO Smart is Designed and Made in India by an ISO 13485 certified company. It comes with warranty and support. The unit is BIS and AERB regulatory certified.


Download catalogue
  • alerio-smart-4000-product-2
  • alerio-smart-4000-product-3
  • alerio-smart-4000-product-1



Features


  • Inverter with 200khz Output
  • HF DC Generator
  • 100mA / 40-120kV / 4.2kW
  • Dual Focus LF 1.8mm & SF 0.6mm
  • Digital Command & Control
  • Compact Size and Weight
  • Programmable APR Feature
  • In-Built Stabiliser

Typical Usage Enviroinment


  • Clinics, Laboratories & Hospitals
  • ER & Patient Bedside X-Ray
  • Remote Location & Home Visits
  • Secondary to Fixed X-Ray

General Specification


Model ALERIO Smart 4200
Generator Type High Frequency DC Output
Output kV 40kV-120kV in steps of 1kV
Output mA 100mA maximum
Output Power 4.2 kW (100kV, 42mA)
mAs Range 0.1-250mAs
Exposure Time 0.01s-5.0s
Focal Spot 0.6mm / 1.8mm IEC
Leakage Radiation <1mGy in one hour / (100mR/hr)
Collimator Manual Collimator with LED bulb
Dimensions Footprint 850mm x 690mm (Floor Area)
Overall Weight <80kG
User Interface Digital with APR and Exposure Switch
Mains Voltage Range 180VAC-260VAC, 15A
