Features
- Fixed Field Collimation
- Laser Guided Collimation
- Field Size 17”x17” at 1m SID
- Tripod Provision & Yoke
- Intuitive Control Panel
- Low Leakage Radiation
- Wide Mains Voltage
- Active Over-Load Protection
- Digital Close Loop Control
General Specification

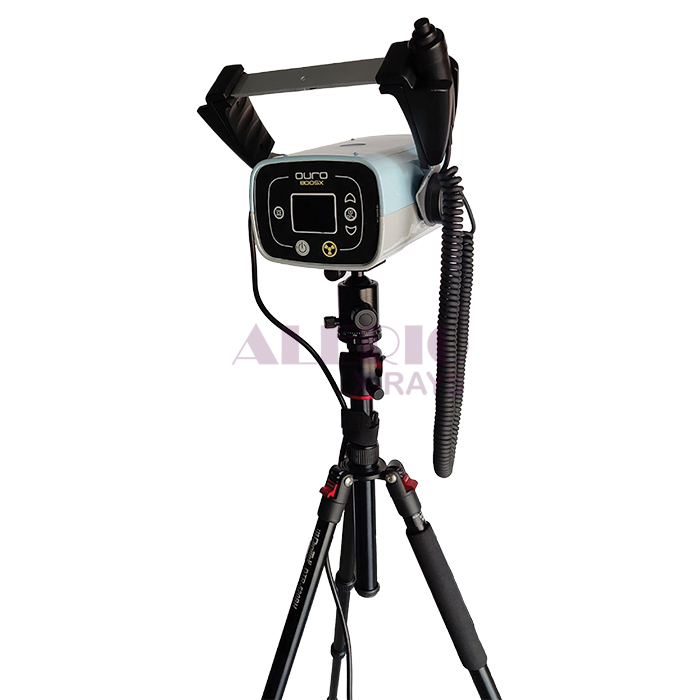

| Model | ALERIO OURO 800SX |
| Output kV Range | 40-90kV (1kV Step ) |
| Output mA Range | 8mA & 10mA |
| Focal Spot | 0.8mm IEC Stationary Anode |
| Exposure Time Range | 0.02 to 2.0s (0.01 sec step ) |
| Generator Type | High Frequency >100kHz |
| Supply Voltage range | 180-250 VAC, 5 Amps 50/60 Hz |
| Weight | 3.5Kg |
| Controls | Microcontroller - clossed loop system |
| User Interface | Graphical 2.4” TFT Display |
| Exposure Switch | Wired & Wireless remote with 2 stage triggers |
