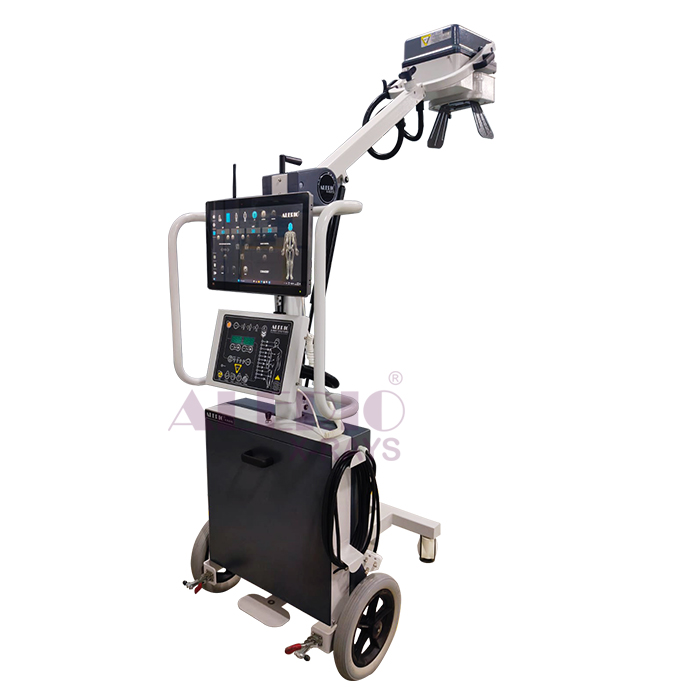

Digital Mobile X-Ray Smart 4200 MDR
ALERIO Smart 4200 MDR is a High-frequency DC Output Digital Mobile X-Ray system equipped with an integrated Touch Screen Display. The equipment can be powered from a standard power outlet. It is lightweight and highly mobile. Hence can be moved in and out of restricted space with ease.
The X-ray source uses a high-frequency microprocessor-controlled inverter with feedback control. This ensures good quality X-Rays are produced under almost any condition, such as a poor mains supply. The exposure settings are pre-programmed as per the anatomy and can be selected using the digital interface.
Salient Features
- Compact Digital X-ray
- High Maneuverability
- High Brightness LED Collimation
- Powerful High Frequency DC Generator
Safety Features
- Low Leakage Radiation
- Active Over-Load Protection
- Adaptive Cooling Period
- Digital Close Loop Control
System Specification
- 15.6" 1080p FHD Touch Screen
- Intel i5 10th GEN
- Network connectivity (Ethernet LAN and WIFI)
- 8GB RAM | 512GB SSD
- Windows 11 OS
- External USB for Data sharing
General Specification
| Model | ALERIO Smart 4200 MDR |
| Generator Type | Ultra High Frequency DC Output |
| Output kV | 40kV-120kV in steps of 1kV |
| Output mA | 100mA maximum |
| Output Power | 4.2 kW (100kV, 42mA) |
| mAs Range | 0.1-250mAs |
| Exposure Time | 0.01s-5.0s |
| Focal Spot | 0.6mm / 1.8mm IEC |
| Leakage Radiation | <1mGy in one hour / (100mR/hr) |
| Collimator | Manual Collimator with LED bulb |
| Dimensions Footprint | 850mm x 690mm (Floor Area) |
| Overall Weight | < 85kG |
| User Interface | Digital with APR and Exposure Switch |
| Mains Voltage Range | 180VAC-260VAC, 15A |
